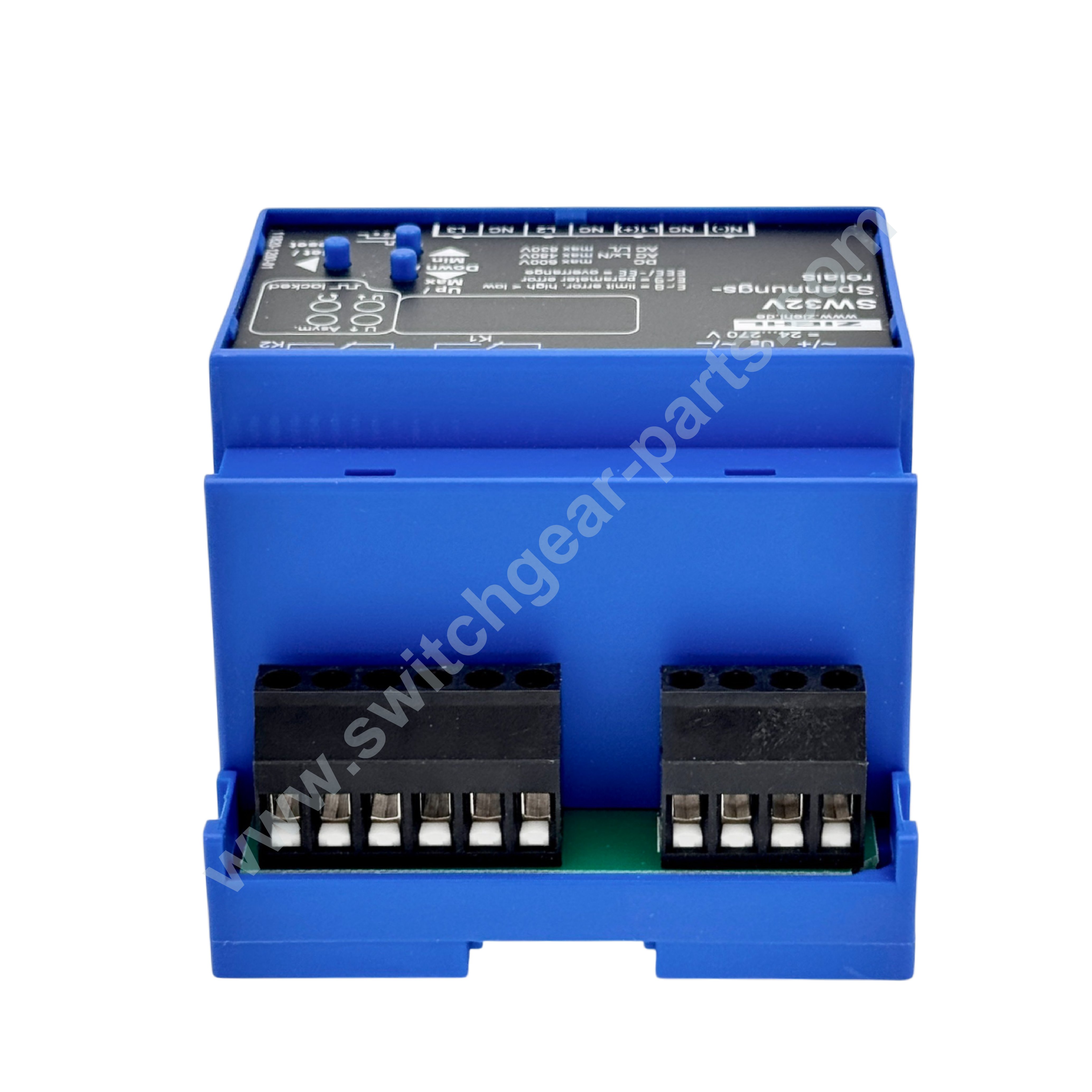

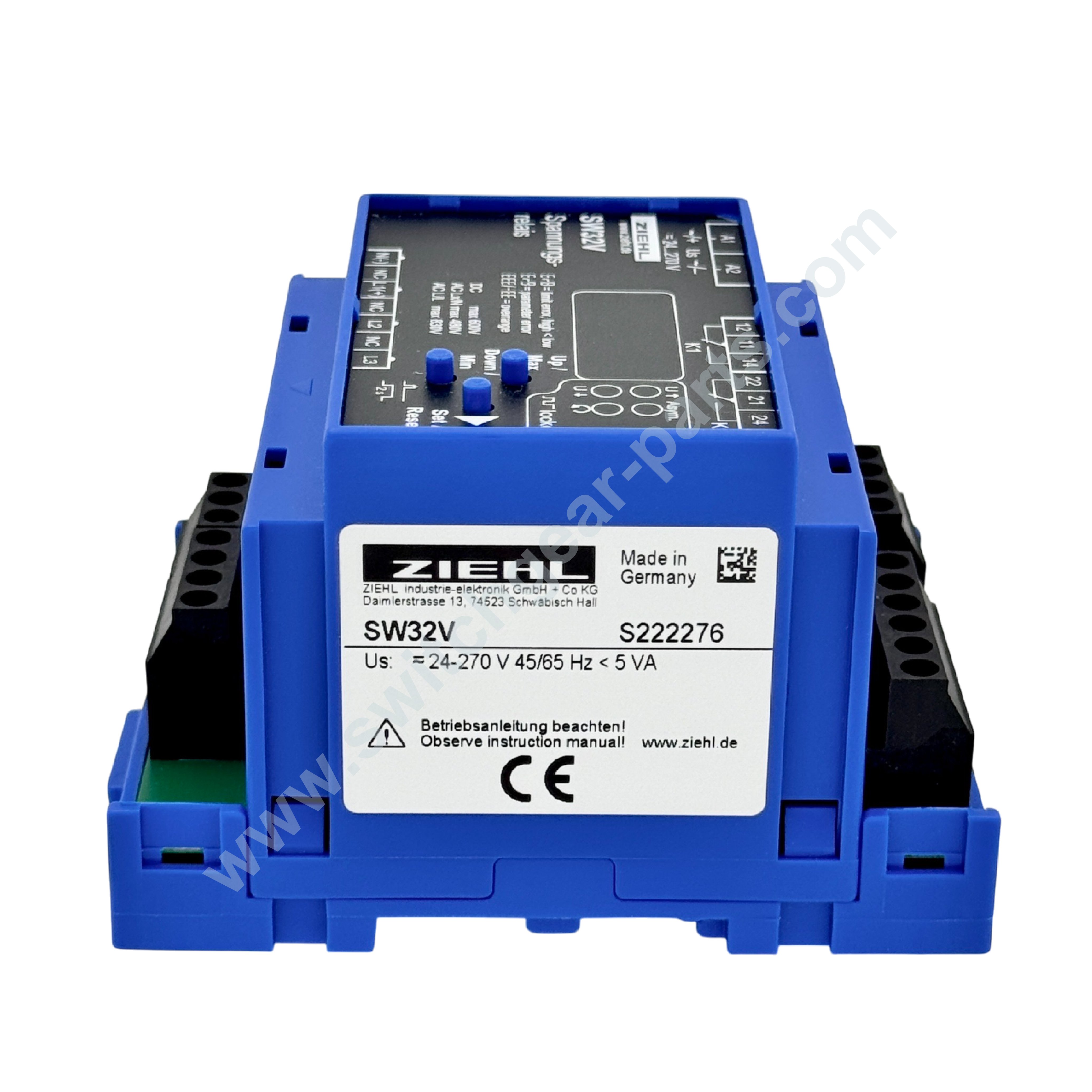

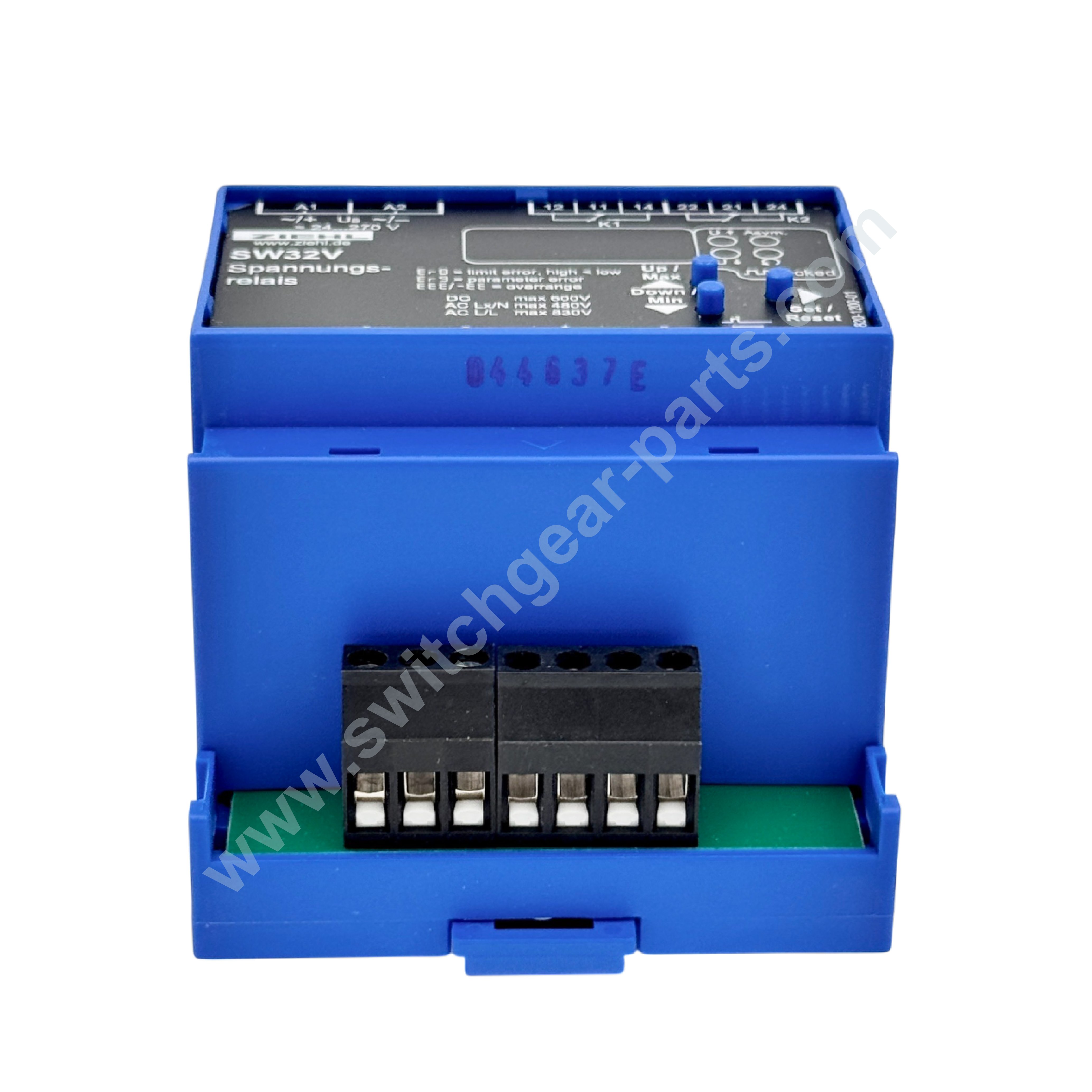

Universal voltage monitor SW32V
The SW32V voltage relay is a high-quality voltage monitor with a large measurement range for monitoring direct, alternating and three-phase networks for overvoltage and/or undervoltage. In three-phase current networks, phase symmetry and phase sequence can be monitored in addition.
The limits are set in volts. That allows using the unit with various rated voltages. The digital display is used to display the measurements and to precisely set limits, response times and functions.
Summary of the functions For use as a voltage monitor in energy generation and distribution plants, especially in-plant systems such as PV plants or combined heat and power plants. Voltage monitoring in machines and plants to prevent errors, damage or failures in sensitive equipment or devices.
Product group:
Mains Monitoring
Input/ Measured parameter:
Voltage, Phase
Outputs:
Outputs/Relays
Supply voltage:
AC/DC 24 - 270 V
Design:
Mount in switchgear cabinet, Mount in circuit breaker box
Extras:
Monitoring of symmetry of phases, Monitoring of phase sequence
Applications:
Wind energy plants, Plants for Generation of own energy
