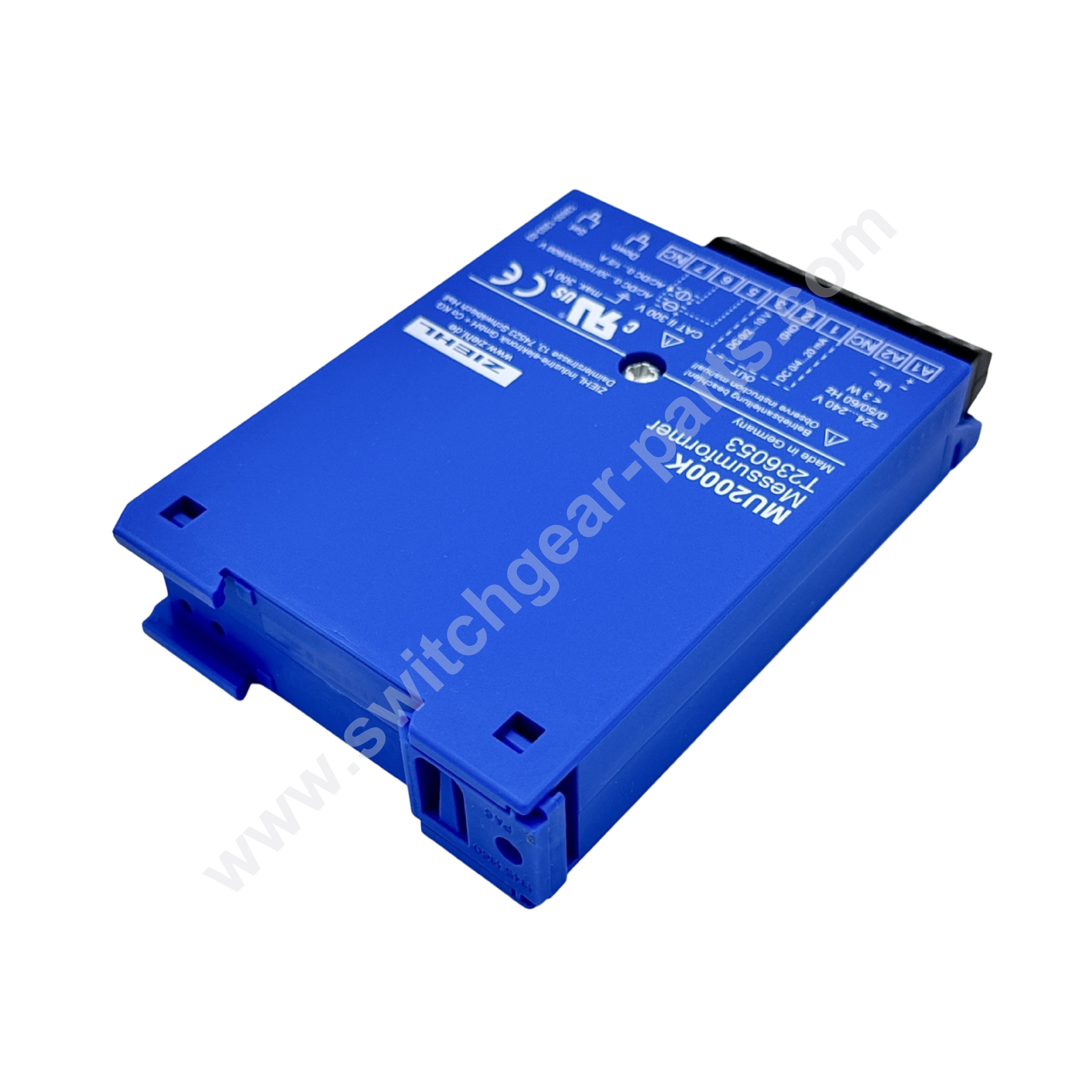

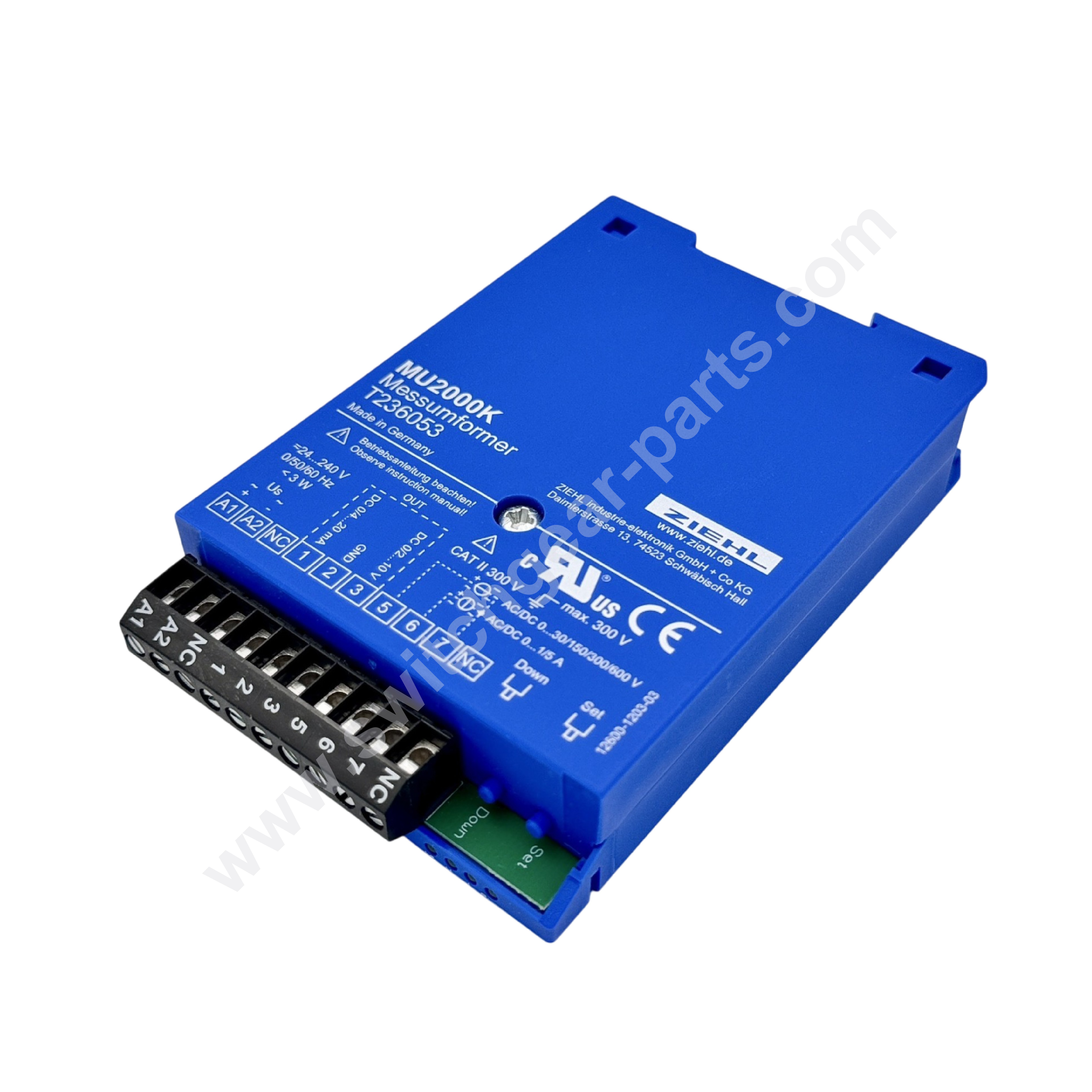

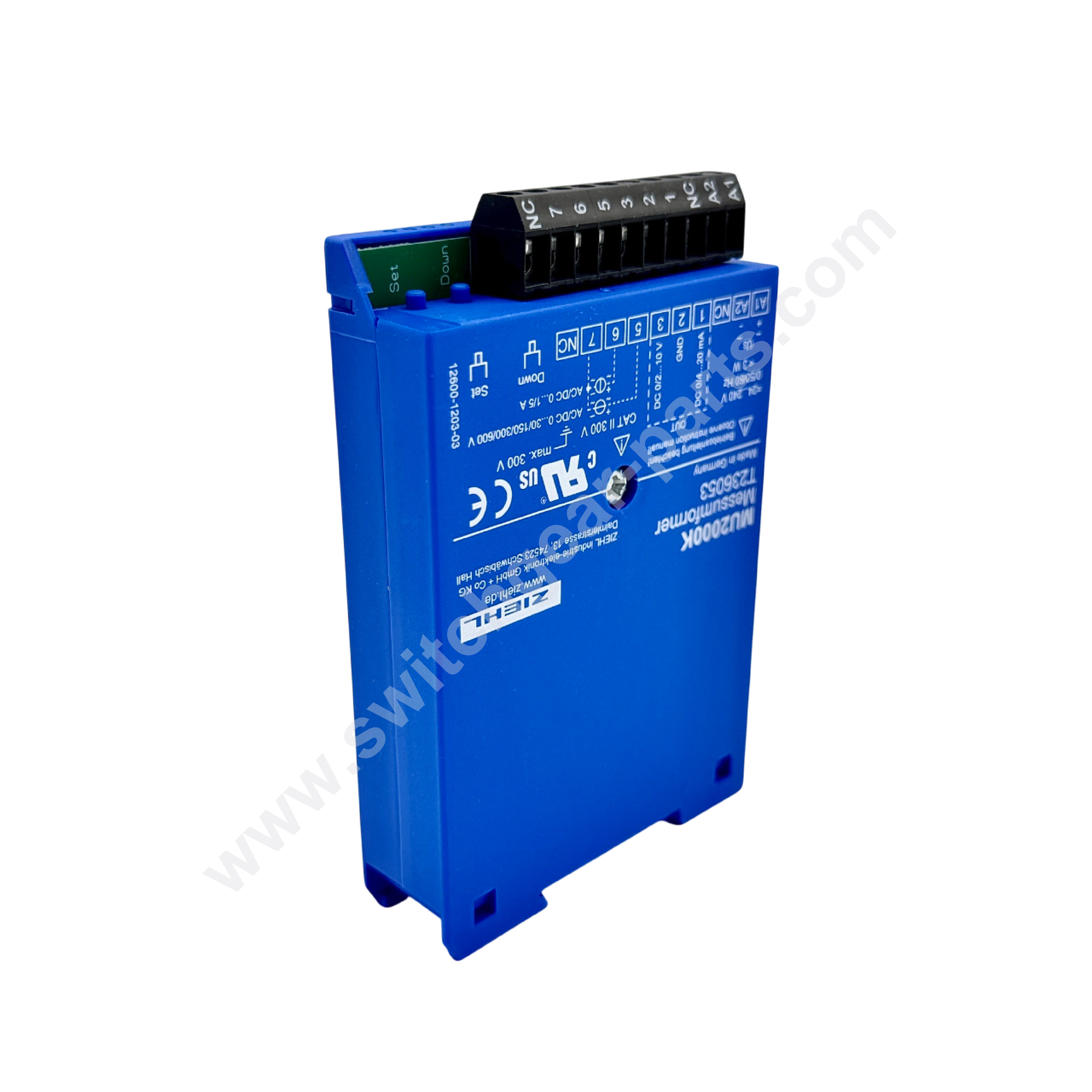

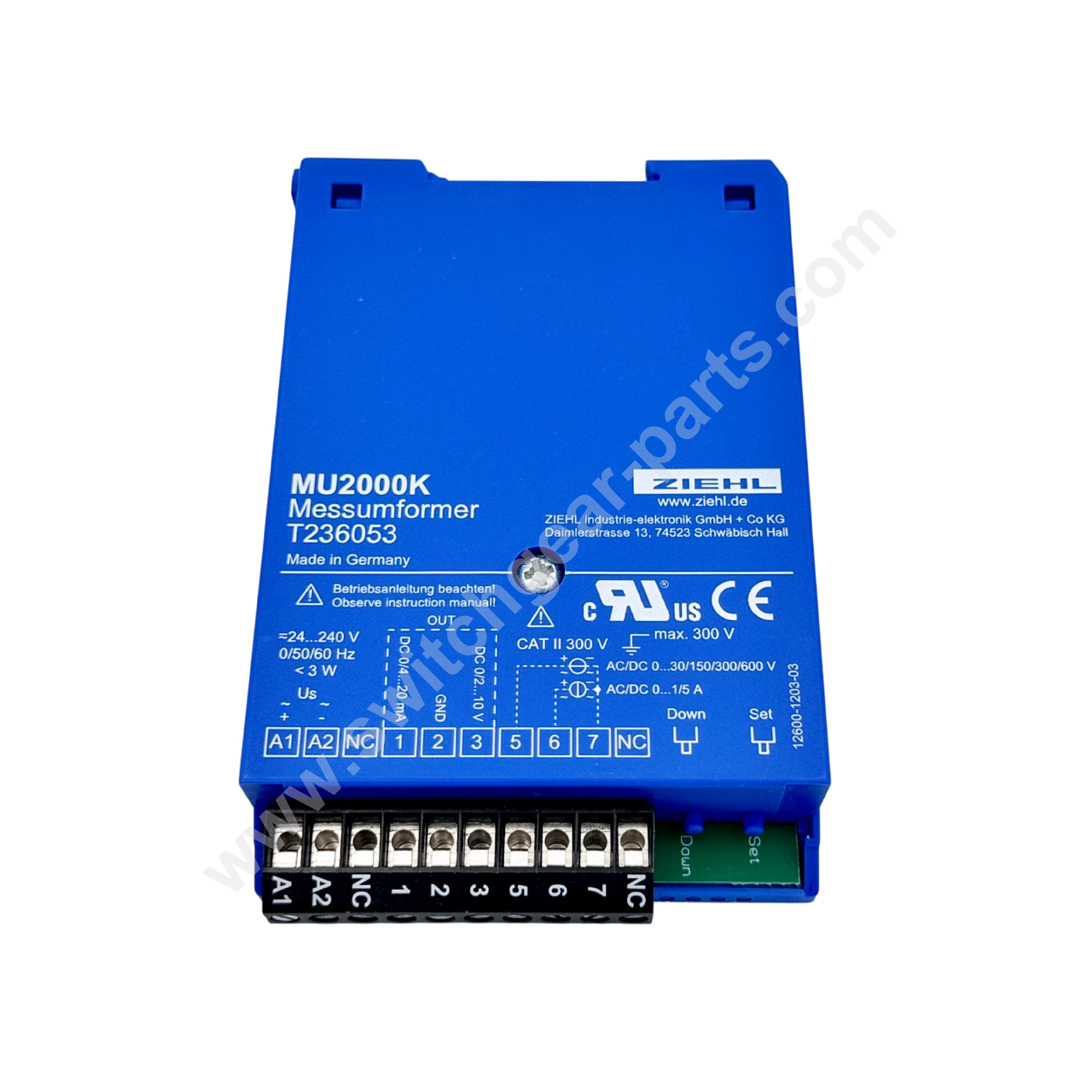

Universal Measuring Transducer Type MU2000K

Measuring transducers MU2000K can measure DC- an AC-voltages up to 600 V and DC- and AC-currents 0-1/5 A.

Preset measuring ranges can be selected. More measuring ranges (zero and full-scale) can be easily scaled. The output signals DC 0/2-10 V and 0/4-20 mA are insulated from measuring input and supply voltage. With its universal supply voltage AC/DC 24-240 V the measuring transducer can be connected to all common supply voltages.

The MU2000K e.g. is suitable for measuring DC voltages and charging currents at batteries or for measuring AC voltages and currents in plants for own generation of energy.

Overview of functions

• Output signal 0-20mA and 0-10V or 4-20mA and 2-10V
• Rated Supply Voltage AC/DC 24-240V
• Insulation between inputs, outputs and supply voltage

Inputs

• AC/DC 0 … 600 V (preset values: 0…30 V / 80…120 V / 0…150 V / 0…300 V / 0…600 V)
• AC/DC 0 … 5 A (preset values: 0…1 A / 0…5 A)
• In measuring ranges for AC also DC-signals can be measured. Negative signals will be measured as positive signals.

Zeros and Full Scales for more measuring-ranges can be freely selected by the user.
