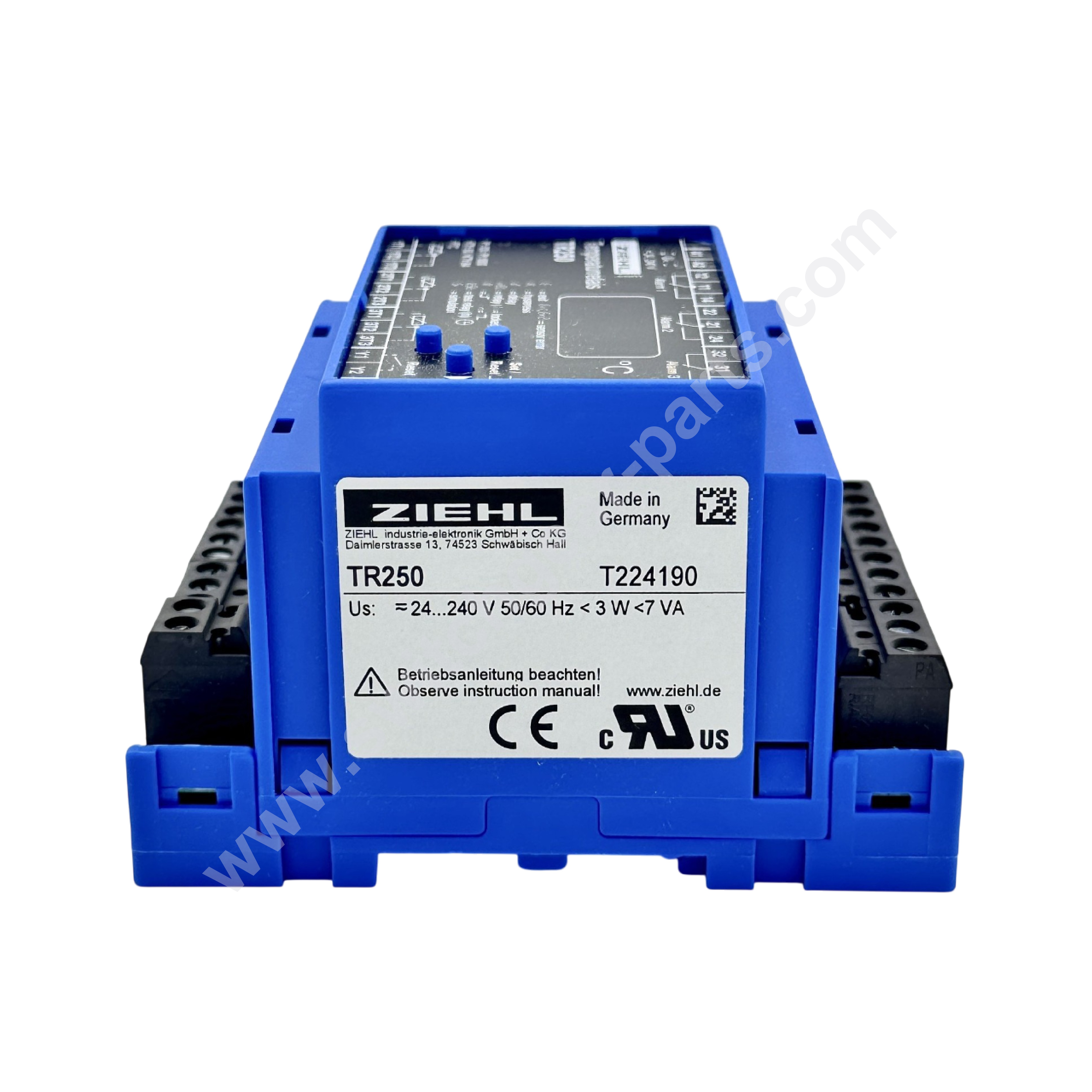

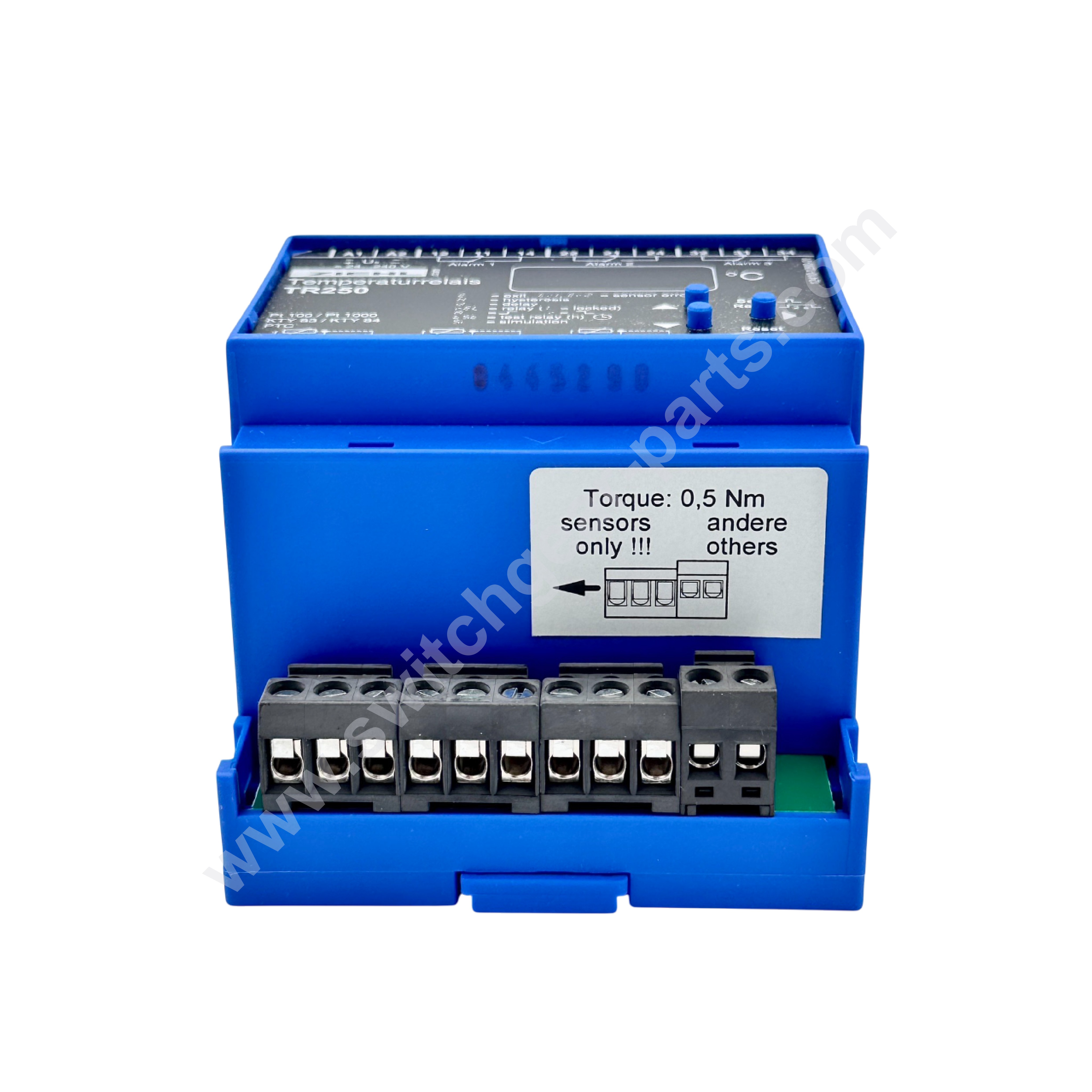

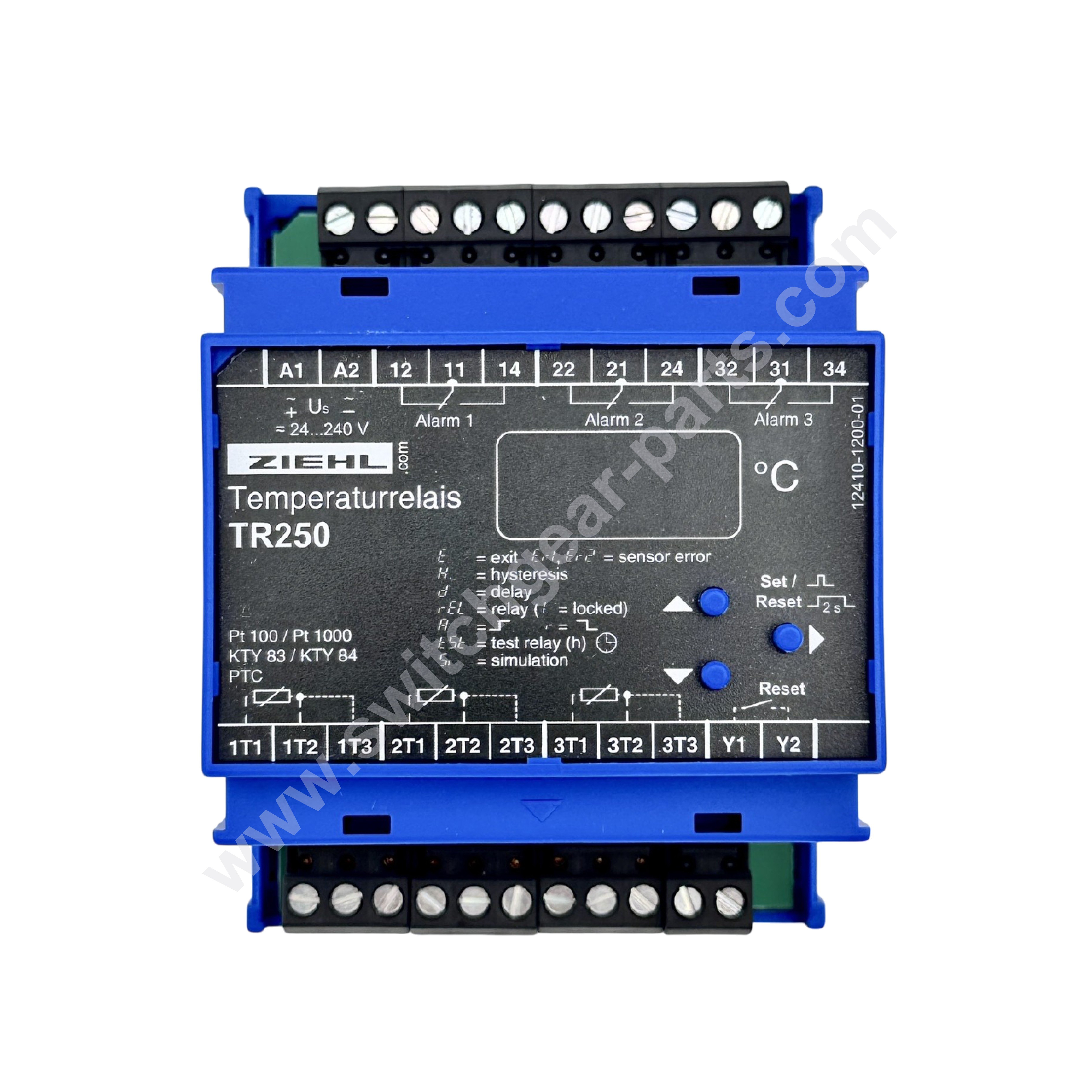

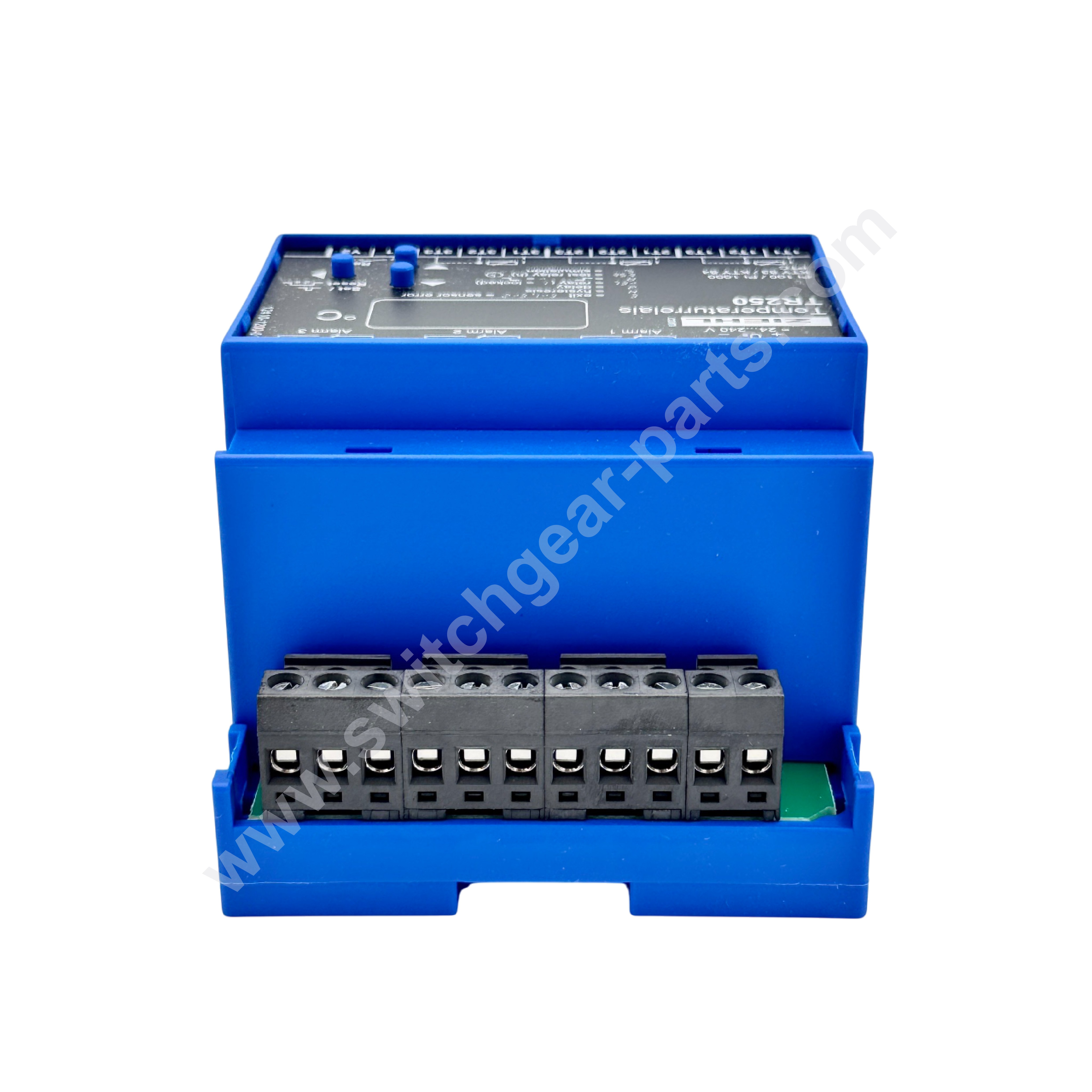

Temperature-Relay Type TR250
The Pt100 thermostat TR250 monitors up to 3 sensors Pt100 (RTD), Pt1000, KTY83 KTY84 or thermistors (PTC) at the same time. Different types of sensors, e.g. Pt 100 and PTC can be monitored simultaneously. The unit is especially suitable for monitoring motors, generators and transformers.
An other application is the use as a 2- or 3-step-controller with additional monitoring of over- or under-temperature. monitoring of differences in temperatures of 2 sensors or temperature controller for heat pumps.
Function
3 Sensor inputs:
Displays:
Switching functions:
6 preset programs:
Product group:
Temperature Measurement
Input/ Measured parameter:
Measuring input other temperature sensors, PTC, Pt 100
Outputs:
Outputs/Relays
Supply voltage:
AC/DC 24-240 V
Design:
Mount in switchgear cabinet, Mount in circuit breaker box
Approval:
UL/CSA, EU / UKCA-Declaration of Conformity, UKCA
Extras:
2 sensor inputs, 3 or more sensor inputs, Reclosing lock
Applications:
Protection of transformers, Protection of motors
